Zhejiang Sayeah Machinery Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov chaw muag khoom ntawm cov ntawv yas extrusion tshuab hauv Suav teb. Txais tos mus yuav cov yas yas extrusion tshuab tshiab tshaj plaws hauv Suav teb nov los ntawm peb lub hoobkas. Txhua lub tshuab customized yog nrog cov khoom zoo thiab cov nqi sib tw.

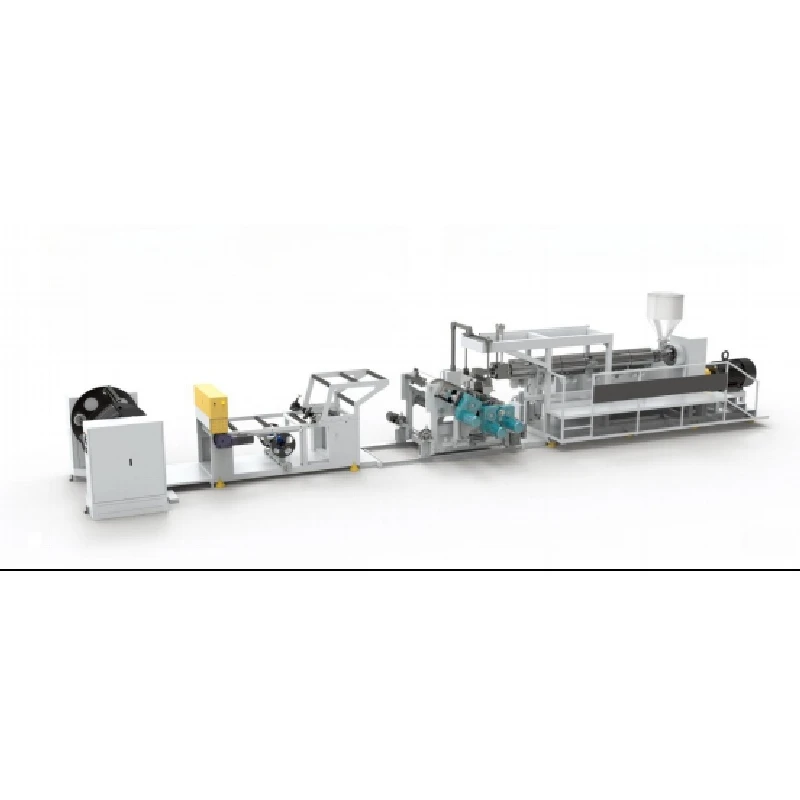

yas ntawv extrusion tshuab
6-theem reducer
Lub tshuab siv lub siab -lub zog peb-theem lub cev muaj zog nrog 6-theem reducer, uas muaj lub zog txaus. Lub thawv txo yog nruab nrog ib qho kev ywj pheej dej-txias pipeline kom ntev lub neej kev pab cuam ntawm lub thawv txo.
Pub lub thoob
Lub thoob pub pub siv lub pob tshab pob tshab tsim kom koj tuaj yeem pom cov khoom seem hauv lub thoob thiab pub cov khoom hauv lub sijhawm. Cov ntsia hlau pub trough txais cov dej-txias tsim los tiv thaiv qhov txhaws ntawm cov khoom noj uas tshwm sim los ntawm yaj rov qab.
Ntsia hlau
Cov ntsia hlau yog rhuab los ntawm 6-theem cam khwb cia txhuas cua sov pobzeb, siv cov khoom hnav-resistant 58Cr13, thiab hardness ncav cuag HV950.
Screen hloov pauv
Lub vijtsam hloov pauv tau txais ob lub chaw nres tsheb hydraulic kom ntseeg tau tias lub vijtsam hloov pauv yam tsis muaj kev tso tseg thiab siv 38CrMoAIA siab- cov khoom zoo los ua kom lub neej ntev.
High-precision T- tuag
Ua los ntawm qib siab - zoo alloy steel, sab hauv ntws channel yog chrome-plated. Nws muaj zog hardness thiab muaj zog corrosion kuj muaj peev xwm.
Kov npo
Cov lus teb yog ceev thiab tsis ncua sij hawm los ntawm kev siv Delta kev lag luam tswj kov npo. Lub lag luam interface yog yooj yim thiab yooj yim.
Calendering yob
Lub calendering peb-cov menyuam siv 0.08mm chrome-plated txheej, thiab qhov hardness tuaj yeem ncav cuag HRC58-62. Kev tsim txoj hlua ruaj ntseg tuaj yeem nres lub tshuab tam sim ntawd thaum muaj xwm txheej, txhim kho kev nyab xeeb zoo. Qhov sib txawv ntawm lub ntsiab calendering rolls yog manually kho thiab nruab nrog ib tug dial qhia los ntsuas qhov deb kom raug. Qhov tseeb tuaj yeem ncav cuag ± 0.01mm.
Trimming / winding / traction ntaus ntawv
Ob khub riam tuaj yeem kho qhov dav thiab qhov tob. Lub trimming thiab winding ntaus ntawv yog tsav los ntawm ib tug ywj siab lub cev muaj zog, nws yuav siv tau nrog online -crusher. Cov cuab yeej traction adopts aluminium alloy txias rollers. Lub ntsiab traction roj hmab cov menyuam yog tsav los ntawm lub cev muaj zog ywj siab.
Rewinding ntaus ntawv
Ob chav -chaw nres tsheb tsis yog- nres rewinding ntaus ntawv yog tsav los ntawm lub cev muaj zog torque. Nws muaj 6- ceev adjustable torque, equipping ib ceev-tso rewinding ntaus ntawv, uas yuav txuag tau koj lub sij hawm thiab kev rau siab.
Cov yam ntxwv tseem ceeb ntawm kev tsim kho
- Daim ntawv extrusion chav tsev yog kev sib xyaw ntawm extruder, peb yob calenders, nqa -off unit, winder (nrog rau cov ntawv khib nyiab) thiab hluav taws xob tswj txee.
- Cov khoom tseem ceeb, xws li ntsia hlau, chim, tshuaj ntsuam exchanger, T- tuag txais superior alloy steel (38 CrMoAIA) nrog siab hardness, muaj zog corrosion kuj thiab lub neej ntev kev khiav hauj lwm tom qab nitrogen kho.
- Cov ntsia hlau txais loj L / D piv, sib npaug plasticization thiab siab plasticizing muaj peev xwm.
- Tsis yog- nres ceev ceev screen changer nrog ob -sieve, tswj los ntawm hydraulic ntaus ntawv, lub lag luam yog yooj yim thiab txhim kho cov khoom efficiency.
- Daim ntawv qhia hnub, nqa tawm chav tsev thiab winder txais kev sib koom ua ke tsim, zoo li zoo, yooj yim thiab txhim kho kev tsim khoom.
- Lub tshuab ncej txais square steel, kom paub tseeb tias lub tshuab ua haujlwm ruaj khov hauv kev kub ceev. Lub cev muaj zog txuas nrog lub thawv iav ncaj qha, txhim kho kev tsim khoom thiab kev siv hluav taws xob qis dua.
- Nco tseg: Tshwj xeeb specification thiab configuration ntawm cov khoom tuaj yeem tsim raws li tus neeg siv khoom xav tau.
Kev siv:Cov koob no yog tsim los tsim mono- txheej PP / PS / PE / HIPS yas ntawv, uas yog siv los ua cov khob dej pov tseg, dej khov- khob khob, yogurt khob, hau, tais, phaj thiab lwm yam.
Main Technical Parameters
|
Qauv |
SY-PC-90-C |
SY-PC-110-C |
SY-PC-120-C |
|
Raw Khoom |
PP.PS.HIPS.PE |
||
|
Daim Ntawv Thickness |
0.15-1.5 hli |
||
|
Extrusion muaj peev xwm |
100kg / h |
200kg / h |
250kg / h |
|
Ntsia Hlau Dia. |
90 |
110 |
120 |
|
L/D Ratio |
33 |
||
|
Main Lub cev muaj zog |
37 kwg |
55 kwv |
110 kwv |
|
Lub zog tag nrho |
100 KW |
130 KW TSI |
200 KW |
|
Qhov hnyav |
9T |
12T |
14T |
|
Fais fab mov |
380V / 50HZ / 3Phree Phaj Plaub Hlau |
||
Peb Qhov Kev Pabcuam
Yas Sheet Extruders thiab Cov Khoom Pab Txhawb: Muab ib qho - nres kev daws teeb meem nrog rau cov khoom siv extrusion, txheej txheem, thiab thev naus laus zis.
Peb yuav muab ntau qhov tseeb thiab muaj txiaj ntsig tsim khoom thiab ua haujlwm raws li cov neeg siv khoom thov.. zoo Pre- kev sib tham txog kev muag khoom.
Peb muaj cov kws tshaj lij QC pab pawg los xyuas kom meej lub tshuab kuaj thiab cov qauv ua pov thawj.
Ua 100% kev soj ntsuam ua ntej cov khoom xa tuaj.
Muaj qhov random tshuaj xyuas thaum lub sijhawm ua haujlwm. Thiab pab cov neeg siv khoom nruab lub tshuab thiab kev debugging.
Muab ib xyoos kev pab cuam rau lub tshuab warranty, lub neej tom qab - kev muag khoom.
Peb Qhov Zoo
Peb tau koom nrog hauv daim ntawv extrusion kev lag luam rau ntau tshaj 25 xyoo.
Peb muaj cov cuab yeej siv ntau lawm thiab kev tswj xyuas.
Raws li cov chaw tsim khoom, peb muab cov nqi sib tw heev.
Siab automated, kom ruaj khov tso zis.
High molding precision nrog cov phab ntsa tuab.
Tau tshaj nrog ntau yam khoom siv yas.
Yooj yim rau kev khiav lag luam, nrog cov nqi kho mob tsawg.
FAQ
Q: Dab tsi yog qhov kev tsim tawm ntawm koj cov ntawv yas extrusion tshuab?
A: Peb lub tshuab extruder tuaj yeem tsim tau 250kg ib teev.
Q: L / D Ratio ntawm koj lub tshuab yas extrusion yog dab tsi?
A: L / D Ratio yog 33.
Q: Dab tsi yog Sheet Thickness ntawm koj lub tshuab yas extrusion?
A: Cov Ntawv Thickness yog 0.15-1.5mm.
Q: Koj cov nyiaj them poob haujlwm yog dab tsi?
A: T / T lossis L / C
Q: Koj lub sijhawm them nyiaj yog dab tsi?
A: 30% tso nyiaj them ua ntej ua ntej thiab 70% tshuav nyiaj them ua ntej xa khoom.
